We're continuing the assembly guide for the new samurai watchtower today - the base level was completed in PART 1 yesterday.







The middle level is pretty similar to the base level, except that there is no large floor piece. Again, the parts are labelled with Left, Right, Front and Back, and it's important these are arranged correctly.

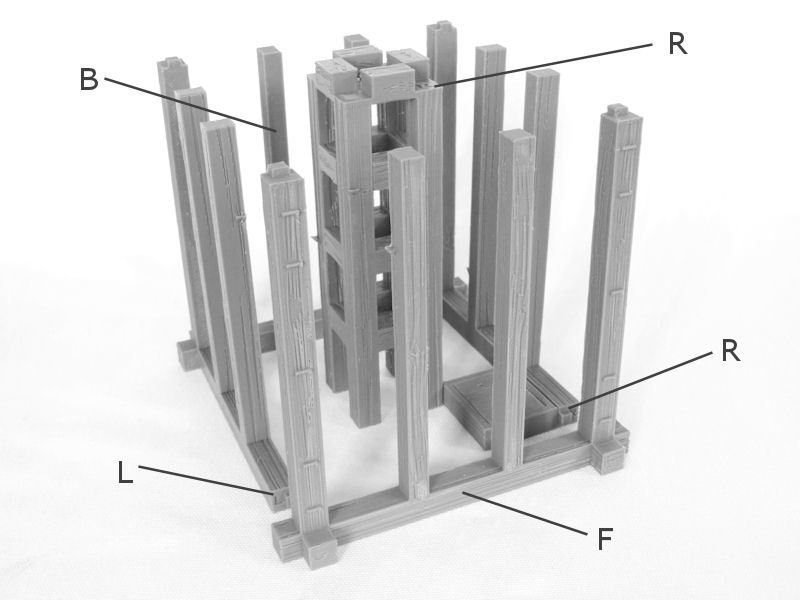

When adding the central column, please ensure the R (on the top) is on the right hand side, as shown in the photo.





In addition to the slightly thicker platform glued at the bottom, you will need to print 3 more staircase platforms. These are glued in as shown, and are located on the small triangular rests.

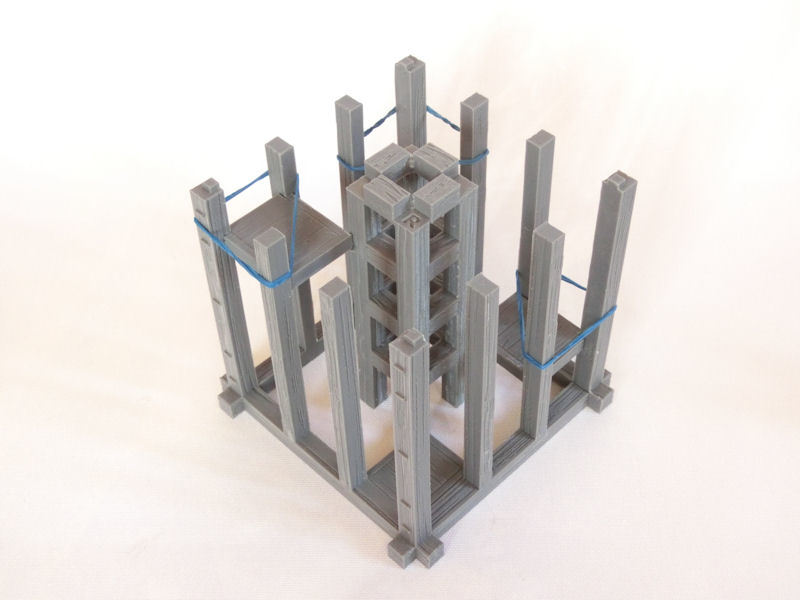

I found that it was helpful to add a few rubber bands to hold the vertical pieces tightly together when gluing.





After adding the platforms, you can glue in the 4 staircases next. Gluing them to the platforms, vertical posts AND the central frame will make your model much stronger.





The last step for the mid-level piece is to add horizontal beams, to the front and back. These beams rest on the small nubs on the outside.

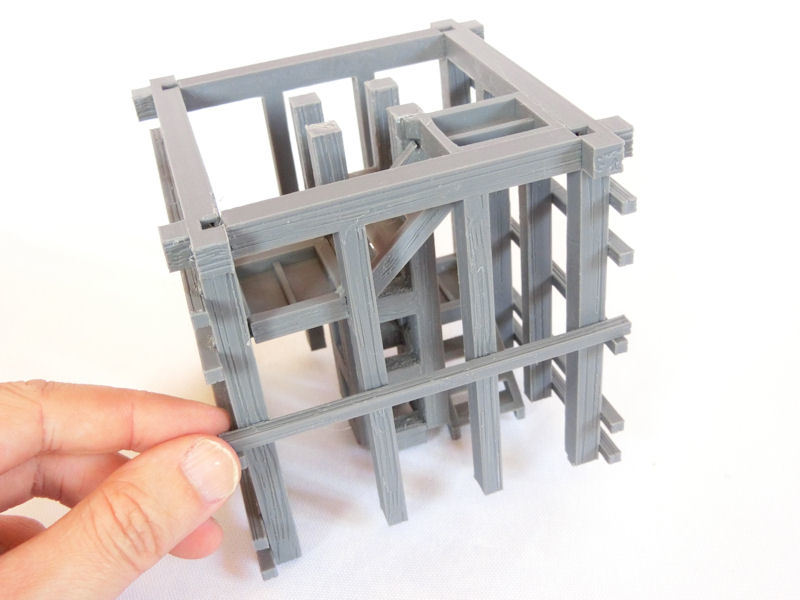

Once the beams on the front and back are dry, flip the piece over carefully, and then glue more horizontal beams to the left and right sides. These rest on the previous beams, as shown.

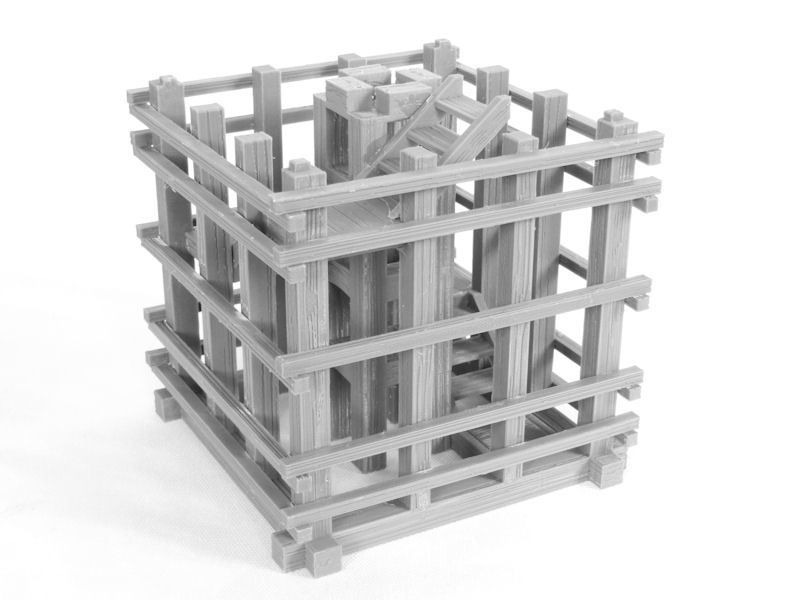

When all the beams have been glued in place, this is how the finished mid-level section looks.



The assembly guide concludes in Part 3 >>
